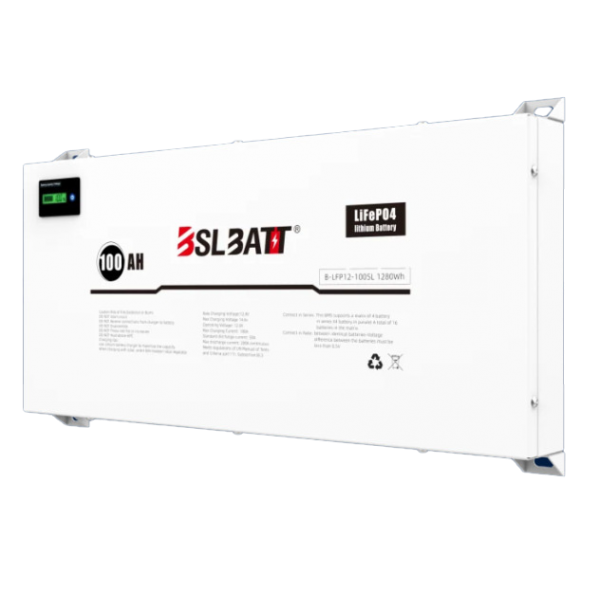

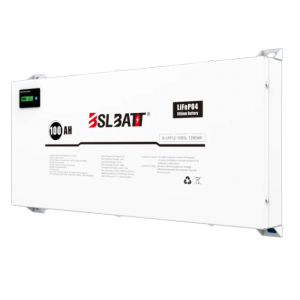

The Ultra-thin LFP (Lithium Iron Phosphate) RV Energy Storage Battery is a high-performance, space-saving solution designed for recreational vehicles and off-grid energy applications. Leveraging advanced LFP technology, this battery offers exceptional reliability, safety, and longevity—providing peace of mind for users on the move.

Key Features

• Higher Energy Density: Efficient storage in a compact form.

• Ultra-thin Design: Saves up to one-third of the space, ideal for RV and mobile setups.

• Long Cycle Life: Delivers over 4,000 cycles at 80% Depth of Discharge (DOD).

• Fast Charging Capability: Supports high-speed charging for convenience on the road.

• Advanced Thermal Management: Passive/natural cooling ensures safe and efficient operation in a wide temperature range.

Product Specifications

Model: B-LFP12-100S

• Voltage Range: 9.2V – 14.6V

• Rated Voltage: 12.8V

• Rated Capacity: 100Ah

• Energy: 1.28kWh

• Cell Configuration: 4S1P (3.2V 100Ah cells)

• Charge/Discharge:

  • Max Charge Current: 100A

  • Max Discharge Current: 200A

  • Pulse Current (5s): ~300A

• Thermal Management: Natural Cooling

• Life Cycle: >4000 cycles @ 0.5C/0.25C, 25°C, 80%DOD

• Short Circuit Current: ~1200A

• Internal Resistance: ≤5mΩ

• Dimensions: 270 X 600 X 65mm

• Weight: ~15 kg

• Operating Temp (Discharge): -20°C to 65°C

• Humidity Range: 60±25% RH

• Recommended Voltage: 13.6–13.8V
