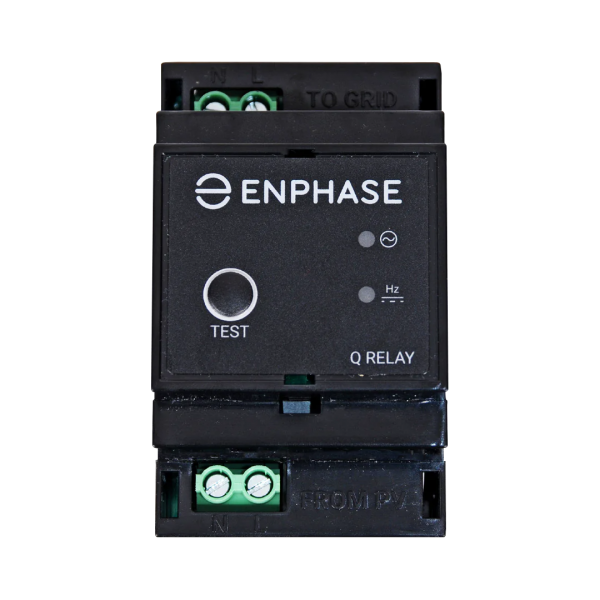

  • ENPHASE RELAY CONTROLLER, 1-PHASE, 20A

*Install must be done by certified Enphase installer

Meet the Q Relay behind smart energy.

In Enphase IQ installations, the multiphase Q Relay acts as a grid monitoring and disconnection device and includes a built-in phase coupler to distribute power line communication signals across phases. An external phase coupler is not needed when the Q Relay is installed. The Q Relay physically isolates the IQ Series Microinverters from the grid when abnormalities are sensed or as required by grid regulations, and it automatically reconnects when valid grid conditions resume. The 4-pole Q Relay isolates all phase and neutral lines and works together with the Enphase Envoy-S gateway.

Enphase Relay controller, Single Phase - Rubicon Partner portal


Easy to Install

  • Lightweight and simple
  • DIN rail mount for quick installation
    Align Relay clip into the bottom channel of the rail, then press in and up slightly until it clicks into place.

Reliable

  • Save on repairs and maintenance with incredibly low failure rates
  • Dependable load control
  • Automatically resets when normal voltage resumes

Smart

  • Can be configured to monitor 1, 2, or 3 phases
  • Remote upgrade capability
  • 25A rating allows more microinverters per AC circuit
  • Easy to read LEDs
  • Built-in power line communication phase coupler
Rubicon Sustainable Technology Applications

Enphase Relay controller is utilized in the following areas:

  • Residential
  • Small Commercial (0 - 50kW)
Enphase training

Enphase Training

This course teaches you all about Enphase microinverters. It will show you were the Enphase microinverters are connected, how they are connected to the Enphase module and to the DB board, and all the benefits of Enphase microinverters. It will also teach you all about how to access the Enphase module via Wifi and show you all the monitoring capabilities.

Learning Management System now available to all Rubicon eCommerce account holders

Complete this course to get points towards your Rubicon Glass score for Lead referrals.

EPR Badge - Rubicon Partner Portal

Regulators Compliance Certificated issued for the product by the NRCS in compliance with SANS 10142 Safety Regulations.

NRCS RCC - Rubicon Partner Portal

Regulators Compliance Certificated issued for the product by the NRCS in compliance with SANS 10142 Safety Regulations

enphase
IP rating IP 20 (Must be used in a protected environment)
Mounting 35 mm DIN rail (standard)
Nominal input frequency 50 Hz
Nominal input voltage (Vnom) 230 to 240 Vrms
Number of Q Relays per system Limit of four active Q Relay devices per system
Number of voltage inputs to monitor 1
Operating AC voltage range for power supply 85 to 270 Vrms
Operating temperature range -40 °C to 50 °C
Output Two single pole, single throw contacts, normally open (L1 and N)
Output power rating 4.8kVA
Output rating (typical) 230 to 240 Vrms, 20A
Power consumption 10 VA
Surge - L1 N output Combination (1kV 2Ω)
