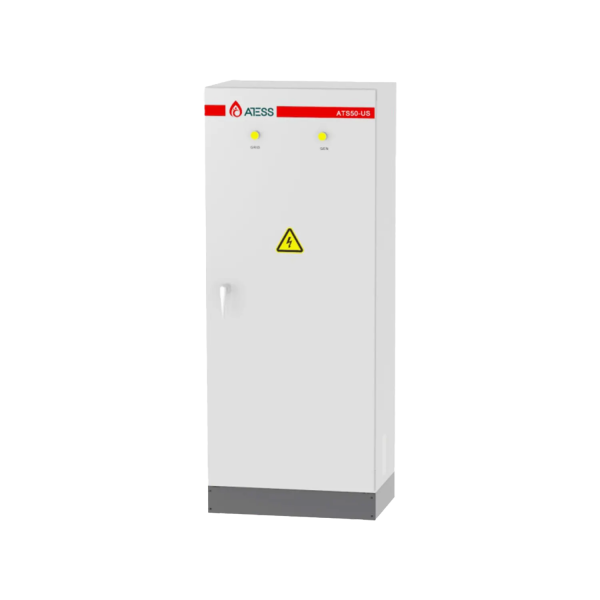

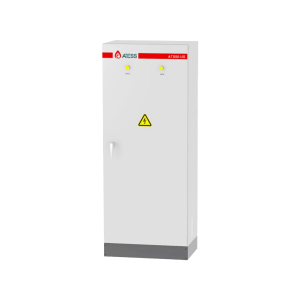

ATESS ATS50 Automatic Transfer Switch for HPS50

 The ATS is an accessory of the HPS inverter systems and is needed when both the utility grid and Diesel Generator need to access the HPS inverter. The ATS will do the switching between grid and the Diesel Generator.

Product Features:

• HPS compatible
• Support Generator Remote Control
• Flexible Management
• Transfer automatically between Grid and Generator
• ATS50 to be used with HPS50

Specifications:

• Rated voltage - 400V
• Rated current - 144A
• Rated frequency - 50/60Hz
• Rated power - kWA
• Zero export function - Optional
• Output breaker - 250A
• Grid breaker - 250A
• DG breaker - 250A
• Lightning protection - Type II
• Protection degree - IP20
• Relative humidity - 0~95% non-condensing
• Operating temperature - -25°C~+55°C
• Dimension (W/H/D) - 600/1500/450mm
• Weight - 77kg
• Communication - RS485/CAN
