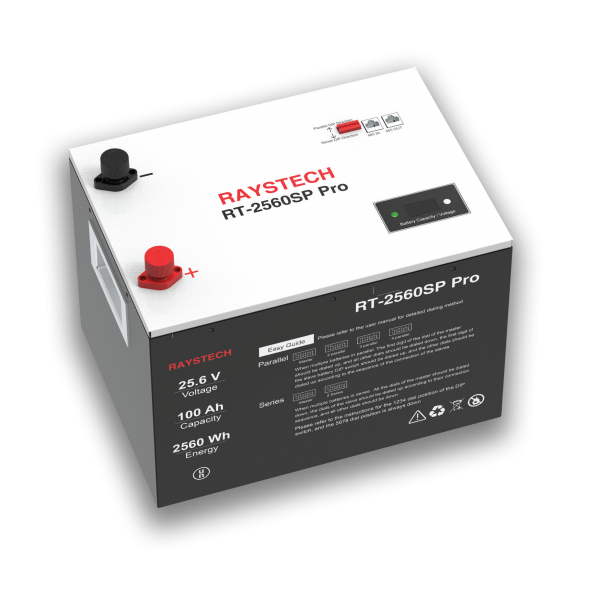

A 100Ah lithium-ion battery designed for deep cycle and solar applications. Raystech batteries are suited for use with solar, camping, portable power, remote home power storage, and other variable renewable energy sources. Lithium-ion batteries have a far higher charge density than flooded or AGM batteries. This allows for much higher cycle life, which translates to longer battery life in deep-cycle applications.

• OLED power display screen and switch buttons
• Rugged stainless steel body with good looking
• High protection level IP65
• Quick connection and insulation protection
• Stainless steel handles guarantees 3000 fatigue tests
• Support external connections in series with voltage up to 51.2V
• Support 6 batteries connected in parallel

Dimensions L*W*H（mm）360*260*250 mm

Re-Volt Comments

This is a really good battery at a very good price point. They use Prismatic cells and the BMS and cells are CFS branded. The case is nice and strong and the OLED Display looks really nice but arguably doesn't tell you much in terms of the actual SOC of the unit. We have performed a few tests on them and have come to the following conclusions and derived some preferred settings for them.

They feature a mode for use as a Lead acid replacement meaning charge voltages can be 14.4 and discharge cutoffs can be 10.8, this is useful if your inverter or device can not be set. It tries to detect when its being used in that mode by means of the charger voltage. The moment the battery voltage goes above 14.2 it seems to engage and from there on in the voltage coming out is 0.8V less than the actual internal battery voltage. so during a discharge the output voltage is going to be 12.5 when internally its 13.3 and when the output reaches 10.8 it should be 11.6 internally. For lifepo4 the cutoff is 2.9V per cell so thats 4 x 2.9 - 11.6. its a clever feature enabling use in various dumb inverter applications.

However

if your inverter has the capacity to be set or programmed it is preferable to not let this battery go into this mode. here is our recommended settings for the units.

CFS / Raystech Battery Settings

Charge Current less than 40A per 100Ah

Absorption 27.8

Float 27.8

Equalize Disabled

Low Shut-down 23.6

Low Shutdown Reconnect 26.00

Low voltage Pre-alarm 24.4 - 24.8
